Accessing the App
Users can login to the portal and navigate to the home page, to access the content replicator the user should click on the “Content Replicator” Tiles.
Content Replicator job list

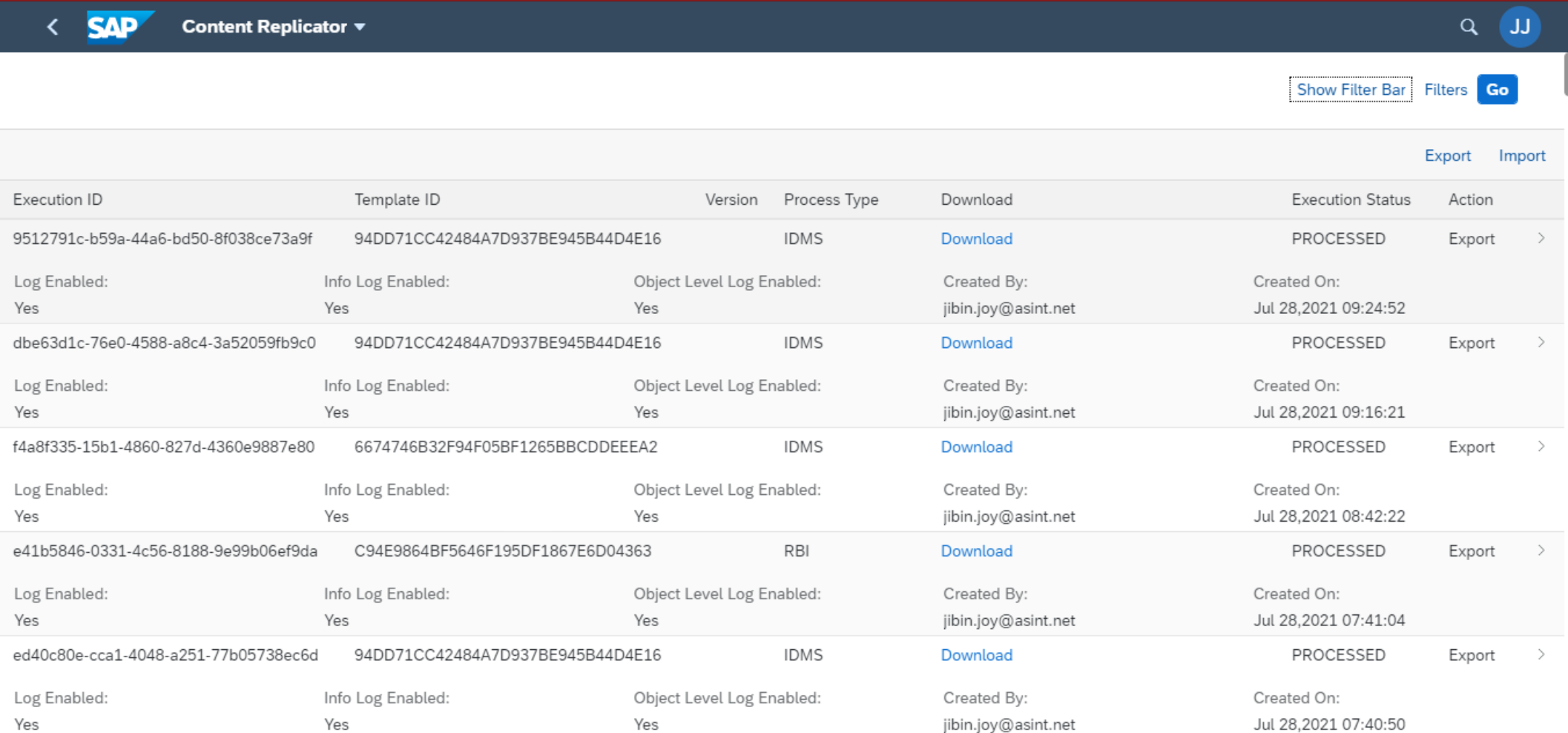

On clicking the tile system will navigate to the below content replicator page.
On clicking the tile system will navigate to the below content replicator page
Export Data from source tenant
To export the content from the source system user should click on the “Export” button.
On clicking on the Export button system will open the below popup screen to enter the required information.
From the Process Type dropdown user should select the type of object user wants to export, this dropdown has 3 options including RBI, IDMS and CML.
Template ID -> User should provide template Id of the object which should be exported.
Log - User can enable the log
Log Enabled - The will capture Object level log as well as information log.
Info Log Enabled - This will capture information logging
Object Level Log Enabled - This will capture object level logs.

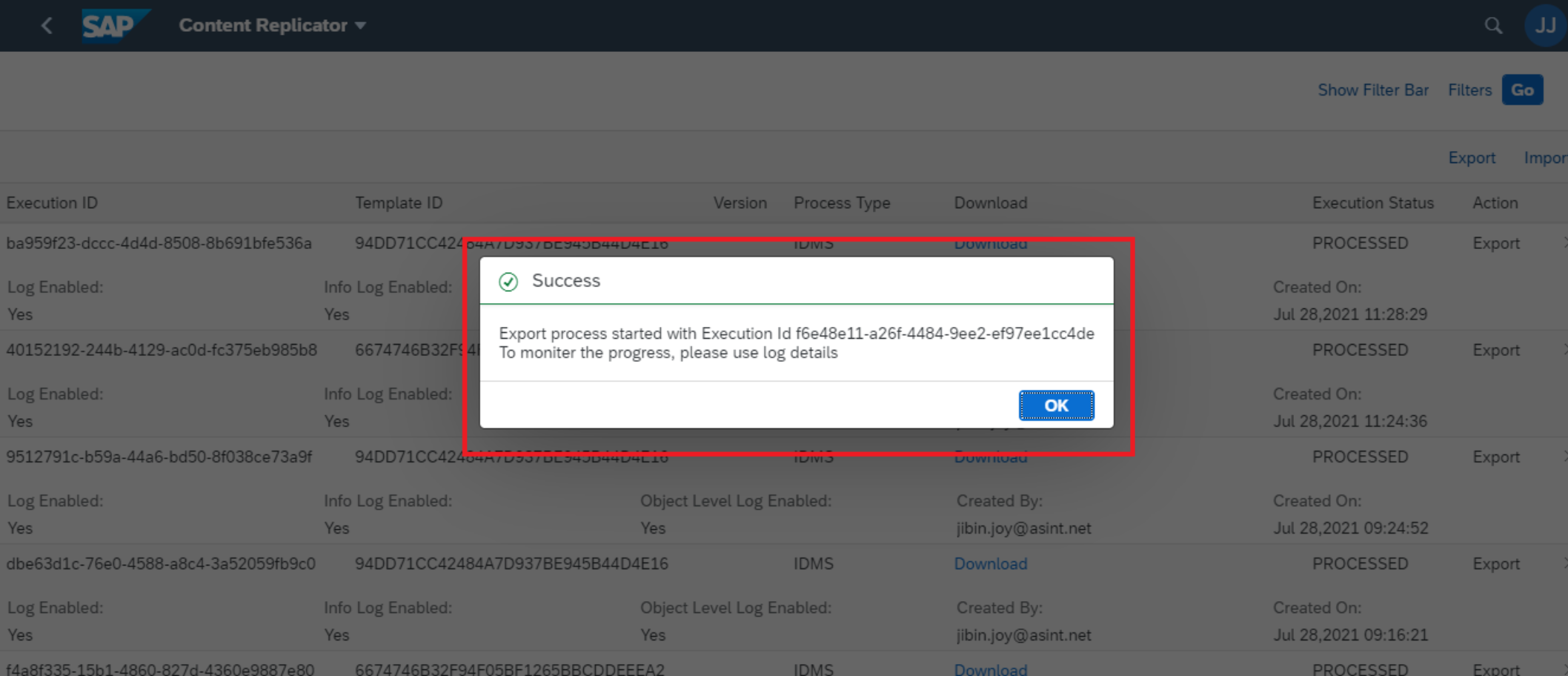

Once the user provides the required information they should click on the “Ok” button, with this system will start processing the export and provide the execution ID for reference.
Users can monitor the progress of the export from the Data Replicator screen using execution ID as reference. Users can refer to the Execution Status column for the current status. This can have following status
Not Processed - The export execution is not started, waiting to start by the system
In-Process - The export process is in-progress and not completed
Processed - The export execution process is completed and the Download link is
activated to download the content.
Users should click on the download button to download the content and save it in the local system. If required, the user can rename the file but should not change any content of the file.

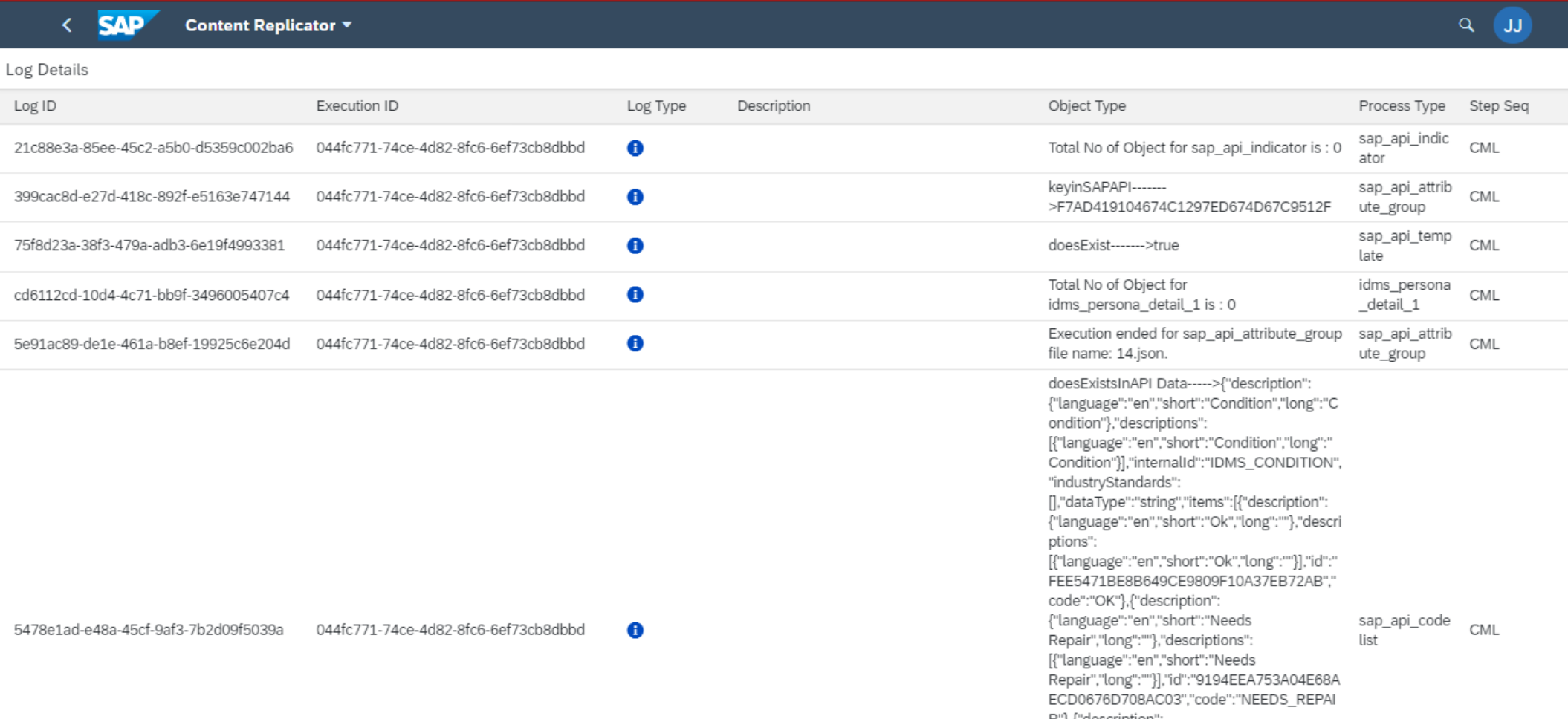

To view log details users can click on the execution ID to navigate to the below screen.
This screen will display the log captured by the system depending on the log type selected by the user while starting the execution.
Import Data To Target tenant

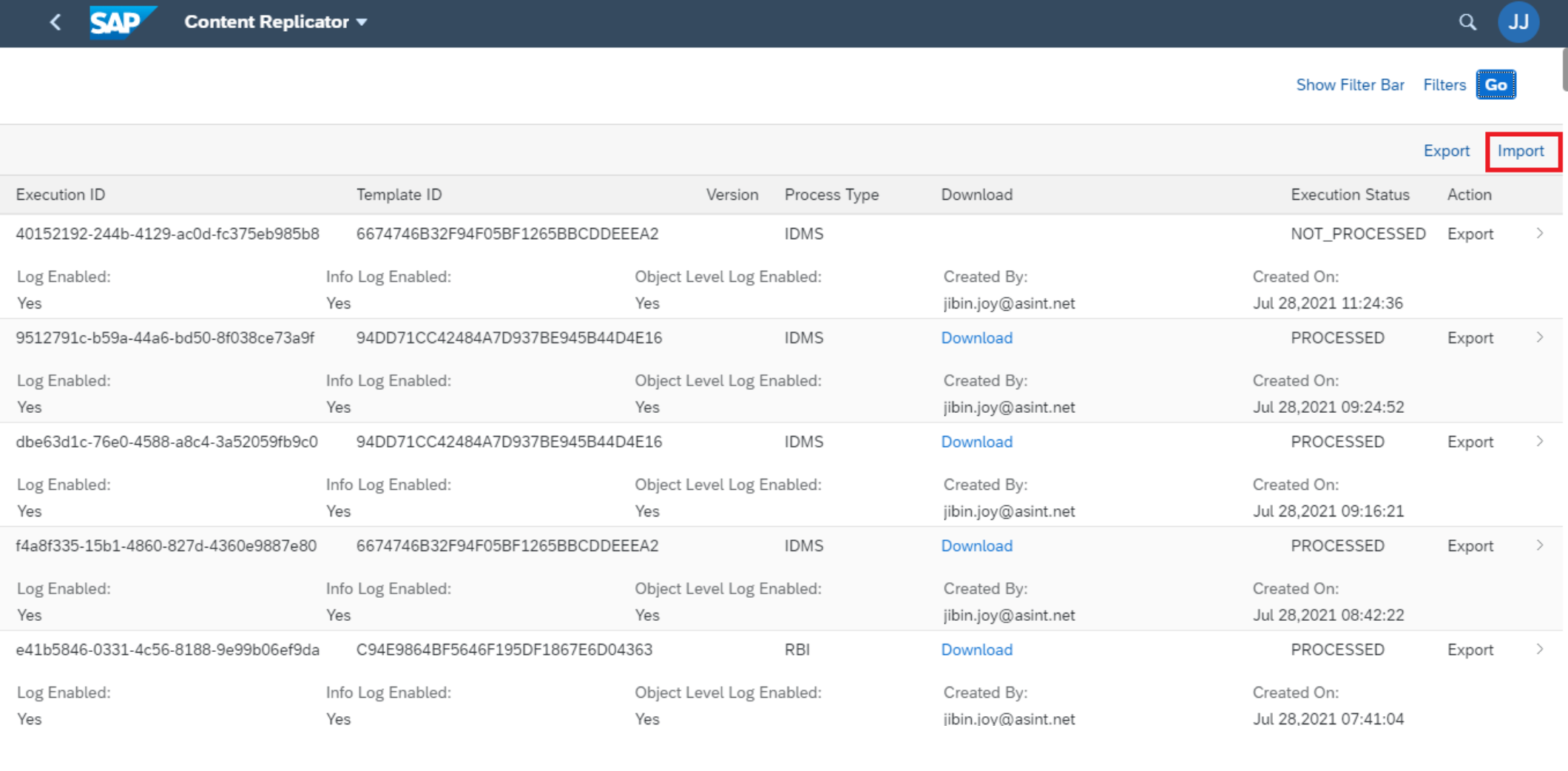

To import the content to the target system user should login to the target system and go to the content replicator and click on the “Import” button.

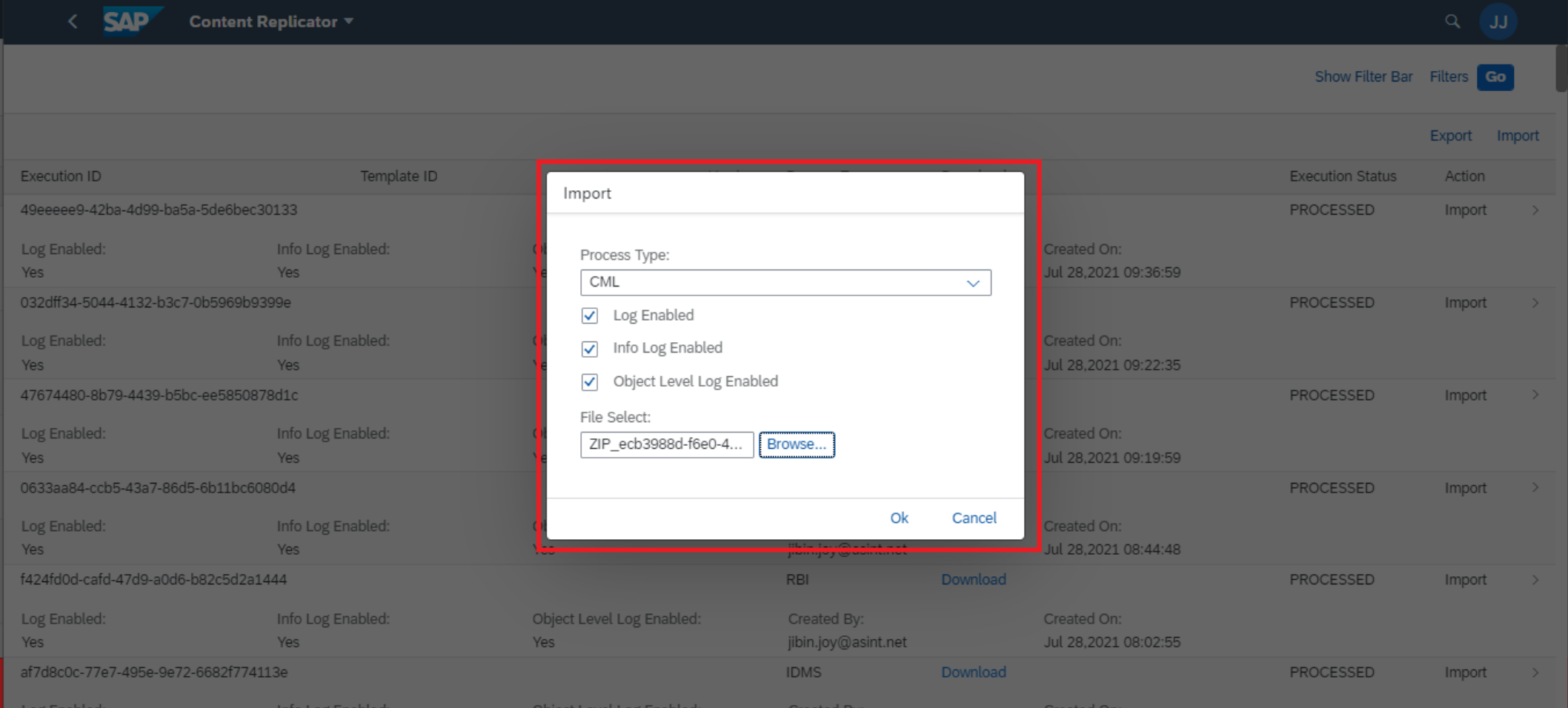

On clicking on the Import button system will open the below popup screen to enter the required information.
From the Process Type dropdown user should select the type of object the user wants to import, this dropdown has 3 options including RBI, IDMS and CML.
Template ID -> User should provide template Id of the object which should be imported.
Log - User can enable the log
Log Enabled - The will capture Object level log as well as information log.
Info Log Enabled - This will capture information logging
Object Level Log Enabled - This will captur object level logs.
File Select - User should select the file which was exported from the source system.
Once the user provides the required information they should click on the “Ok” button, with this system will start processing the import and provide the execution ID for reference.
Users can monitor the progress of the import from the Data Replicator screen using execution ID as reference. Users can refer to the Execution Status column for the current status. This can have following status
Not Processed - The import execution is not started, waiting to start by the system
In-Process - The import process is in-progress and not completed
Processed - The import execution process is completed.
To view log details users can click on the execution ID to navigate to the below screen.
This screen will display the log captured by the system depending on the log type selected by the user while starting the execution.
